Feature:
* Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions and mellifluous sound quality.
* 4 channels of Mic input interface are compatible with 4 line input interfaces; microphone input interface supports 48V phantom power.
* 4 sets of stereo linear input can be connected to stereo devices.
* Each mono input channel has a 3-band EQ with a peak LED indicator.
* 1 set of stereo main output, 1 set of auxiliary output, 1 set of stereo monitoring output, 1 channel headphone monitoring output, 1 set of CD/Tape output.
* Built-in 24-bit DSP audio processor, providing 100 preset effects.
Specification：
|
Model |

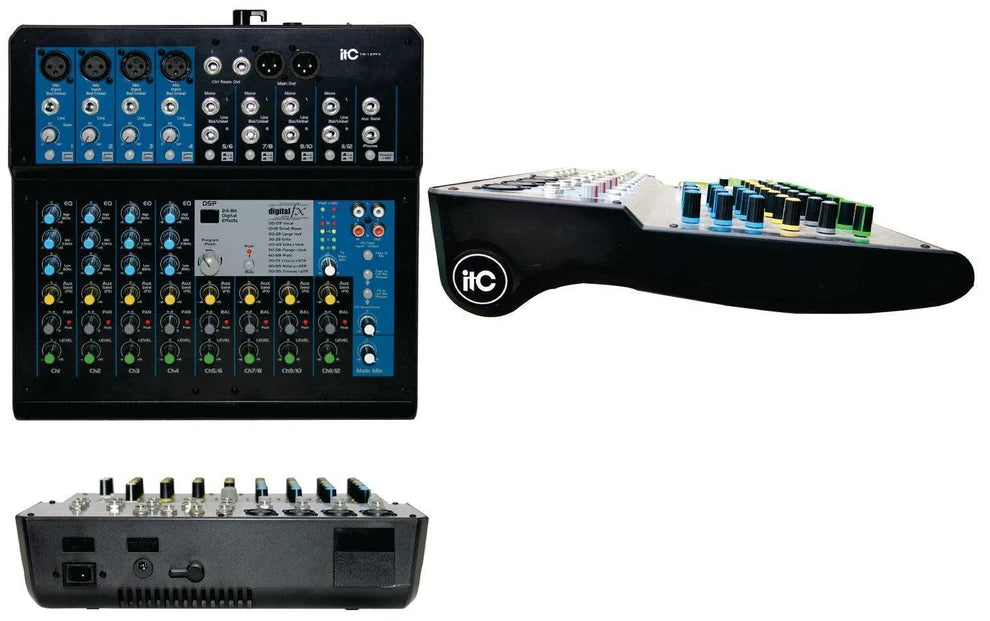

TS-12PFX |
|
Mic input |
4 channels (4 XLR) |
|
Line input |
4-channel single plug mono/stereo automatic switching hybrid interface |
|
Stereo input |
4 sets (8 channels of mono) |
|
CD/Tape input |
1-channel CD/TAPE RCA stereo input interface |
|
Output channel |
1 stereo main output, 1 auxiliary output, 1 stereo monitor output, 1 earphone monitor output, 1 CD/Tape output |
|
Audio processor |
24-bit DSP audio processor (including vocal, small house, hal, echo, echo + reverb, plate,chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects |
|
Phantom power |
+48V with switch |
|
Frequency response |
20Hz-20kHz，±3dB |
|
Distortion |
<0.003% (A-weighted) |
|
Mic balanced input noise |
-119dB(A-weighted) |
|
Common mode rejection ratio |
60dB |
|
Single channel input gain |
MIC: 0 to 48dB, LINE: -33 to +15dB |
|
Stereo channel input gain |
LINE: -8 to +6dB |
|
Main mixing crosstalk |
-87dBu(A-weighted) |
|
Channel crosstalk |
-85dBu(A-weighted) |
|
Maximum output level |
+20dBu |
|
MIC input high-pass filtering |
75Hz, 18dB/oct |
|
Single channel equalization |
High frequency: ±15dB@12KHz; medium frequency: ±12dB@2.5KHz; low frequency: ±15dB@80Hz |
|
Power supply |
External AC18V/1A（AC 230-240V 50/60Hz）power adapter |
|
Power consumption |
≤18W |
|
Size |
290.5×292.9×70mm |
|
Weight |
1.9Kg |
