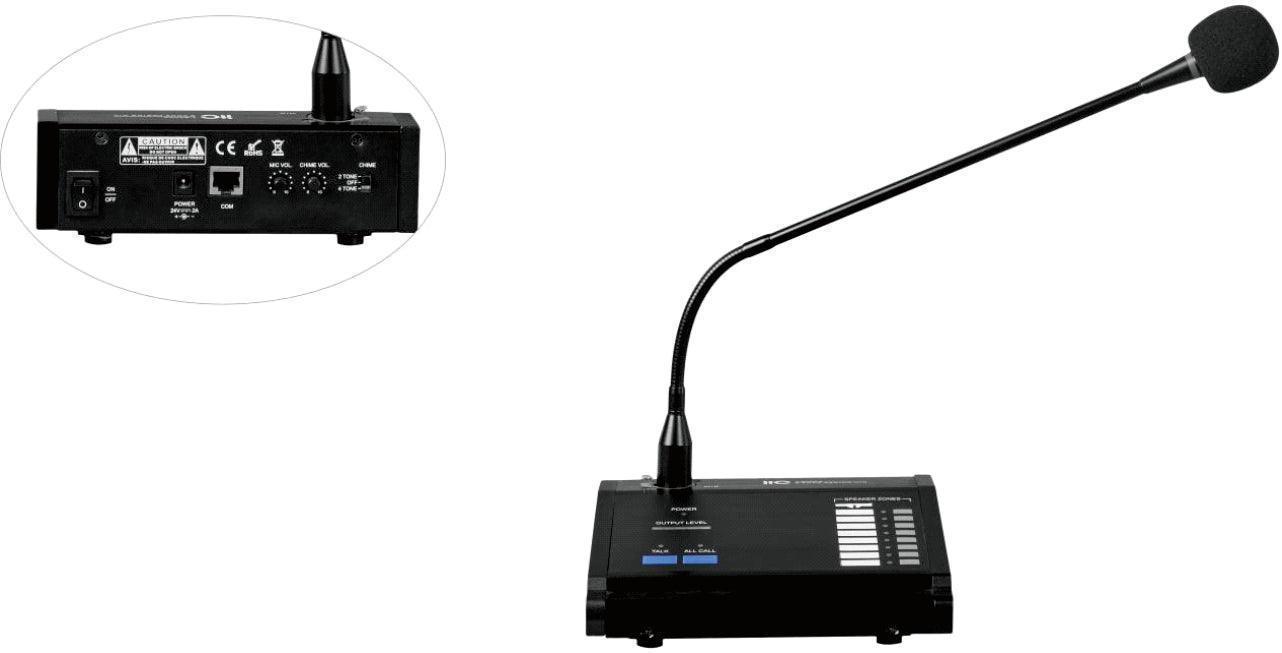

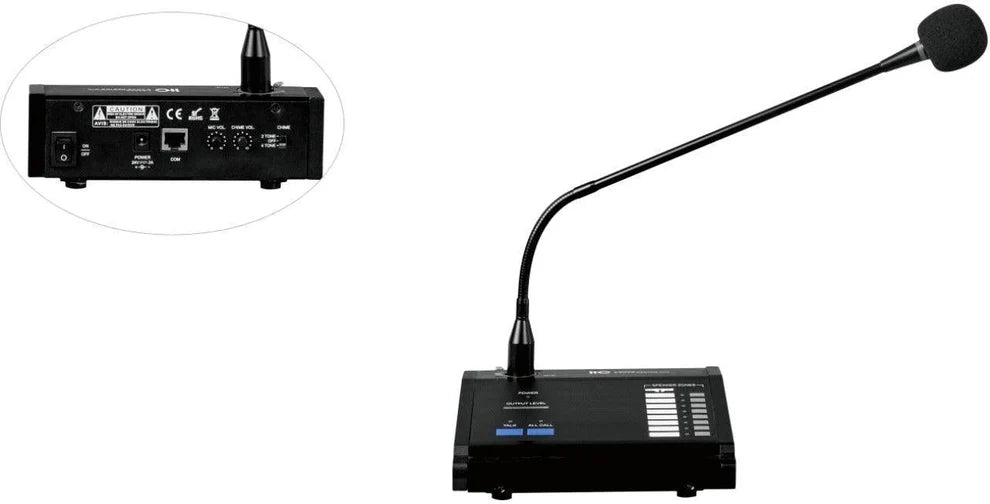

T-8000A Remote Paging Console

Feature:

* The T-8000A remote paging console is connected with T-8000 through universal industrial standard CAT 5 for zone announcement or communication at a remote and different location from the control center.

* Each controller provides four RJ45 ports for the remote paging console.

* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but alsointegration of RS 485 communication and audio transmission together.

* Extra DC 24V power supply.

* Eight zone selector with state indication.

* Talk and all zone paging swift keys are provided.

* 2 and 4 tones chimes with selector and off switch.

* Volume controls are provided for chime and microphone.

* Full indications includes individual zone, all zone, busy, paging, power, output level to provide a direct visualization.
