DECIBEL TRADING EST.

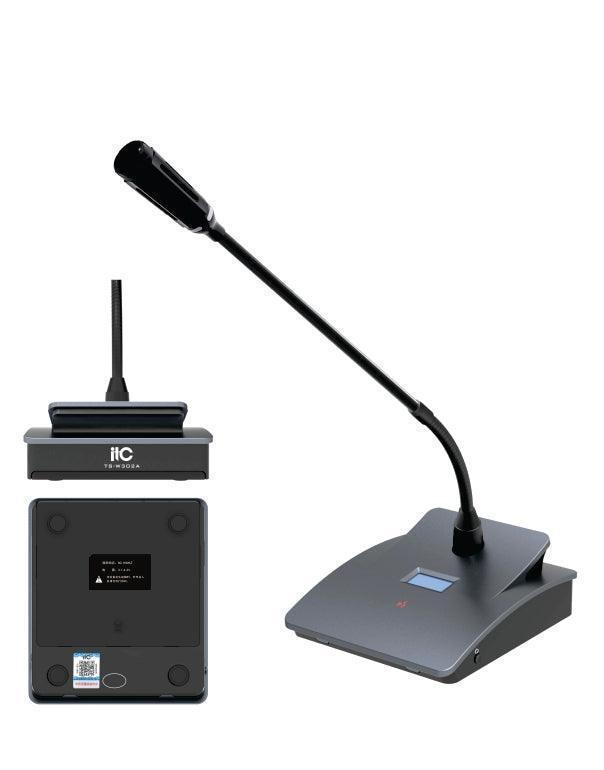

TS-W302A Conference Delegate unit

TS-W302A Conference Delegate unit

Regular price 326.000 JOD
Regular price Sale price 326.000 JOD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details



Features:





* With 48KHz sampling rate is with the better sound quality than CD’s. There is DSP audio processing inside, there is no "pop" low-frequency impact sound.

* Advanced processing chip architecture, and unique processing algorithms, microphone boot connection time is only 5 seconds.

* With the function of intelligent detection of faults, it prompts the user for AP failure, host communication failure, signal is too weak etc.

* Support simple TYPE-C setting SSID, password function, ensure that the system will not connect to the wrong AP;

* With speech countdown and speech timekeeping function.

* With voice control, the microphone can be turned on intelligently. Adjusting the voice sensitivity and set the off time by the PC software.

* With 5-band EQ adjustment function (adjustable with PC software), you can adjust the overall sound effect of all microphone units to be perfect result.

* Support sign-in function, set and initiate sign-in through PC software.

* Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, provide higher confidentiality of the conference system.

* With wireless transmission technology, the venue can be carried out with very little time to conduct venue activities.

* The internal feedback suppression function can effectively prevent howling.

* Built-in lithium battery, battery capacity supports 15 hours of continuous speech.

* Built-in antenna to greatly improves WIFI network transmission efficiency.

* Support TYPE-C port for upgrade program and online charging.



Specifications:




Model

TS-W302A

Microphone type

Cardioid directional electret microphone

Frequency response

80Hz~16KHz

Microphone input impedance

680Ω

Sensitivity

-41±1.5dB (0dB=1V/Pa,at 1KHz)

Maximum SPL

100dB(THD>3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

< 0.1%

Maximum power consumption

1W

Power supply

18650 lithium battery

Charging method

Connect the charging box through the TYPE-C interface

Color

Graphite grey

Sign in function

Touch the key to check in

Display screen

OLED screen

Size (LxWxH)

120*104*43mm

Installation method

Desktop

Wireless frequency range

5.15 GHz to 5.85 GHz

Battery capacity

4800mAh

Weight

0.6 Kg

Speech mode working hours

15 hours

Mixed mode working time

16 hours

Mic rod length

380mm (black)

Download Datasheet
