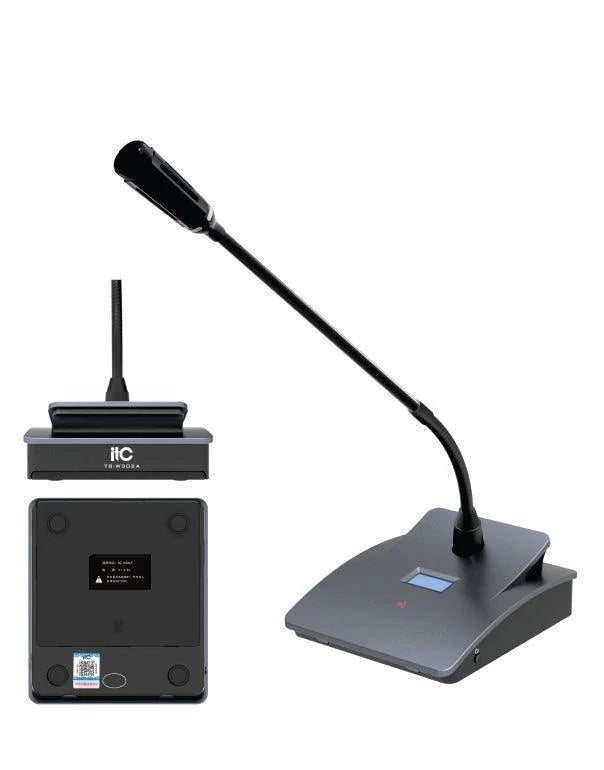

TS-W302 Conference Chairman Unit

TS-W302 Conference Chairman Unit

Regular price 326.000 JOD
Regular price Sale price 326.000 JOD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details




Features:



* With 48KHz sampling rate, it has the better sound quality than CD’s, clear and loud sound. There is DSP audio processing inside, there is no "pop" low-frequency impact sound.

* Advanced processing chip architecture, and unique processing algorithms, microphone boot connection time is only 5 seconds.

* With the function of intelligent detection of faults, it prompts the user for AP failure, host communication failure, weak signal,etc.

* Support simple TYPE-C setting SSID, password function, ensure that the system will not connect to the wrong AP;

* With speech countdown and speech timekeeping function.

* With voice control, the microphone can be turned on intelligently. You can adjust voice sensitivity and set set the off time by the PC software.

* With 5-band EQ adjustment function (adjustable with PC software), you can adjust the overall sound effect of all microphone units to be perfect result.

* Support sign-in function, set and initiate sign-in through PC software.

* Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, provide higher confidentiality of the conference system.

* With wireless transmission technology, easy to arrange venue layout and meeting.

* The chairman has a priority function to close all delegates that are currently speaking.

* The internal feedback suppression function can effectively prevent howling.

* Built-in lithium battery, battery capacity supports 15 hours of continuous speech.

* Built-in antenna to greatly improves WIFI network transmission efficiency.

* Support TYPE-C port for upgrade program and online charging.


Specifications:




Model

TS-W302

Microphone type

Cardioid directional electret

Frequency response

80Hz~16KHz

Microphone input impedance

680Ω

Sensitivity

-41±1.5dB (0dB=1V/Pa,at 1KHz)

Maximum SPL

100dB(THD>3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

< 0.1%

Maximum power consumption

1W

Power supply

18650 lithium battery

Charging method

Connect the charging box through the TYPE-C interface

Color

Graphite grey

Sign in function

Touch button to sign in

Display screen

OLED screen

Size (LxWxH)

120*104*43mm

Installation method

Desktop

Wireless frequency range

5.15 GHz to 5.85 GHz

Battery capacity

5200mAh

Weight

0.6 Kg

Speech mode working hours

15 hours

Mixed mode working time.

16 hours

Mic rod length

380mm (black)



Download Datasheet
