Features :

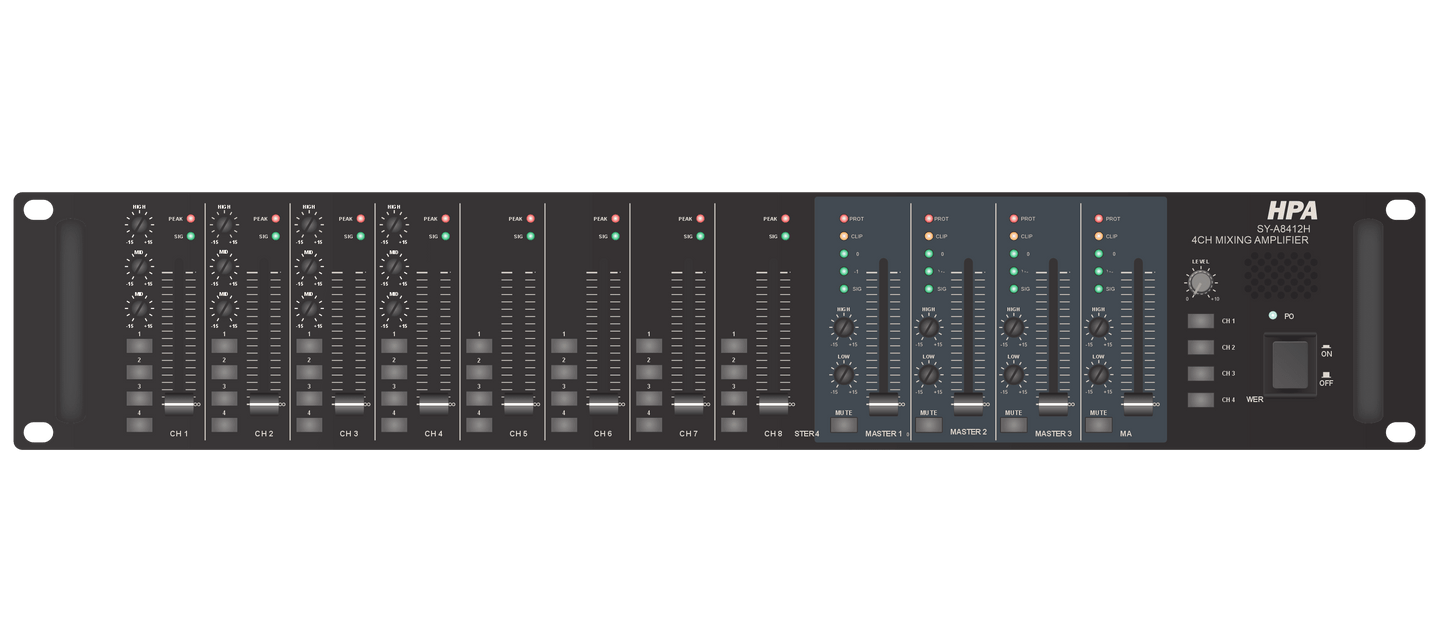

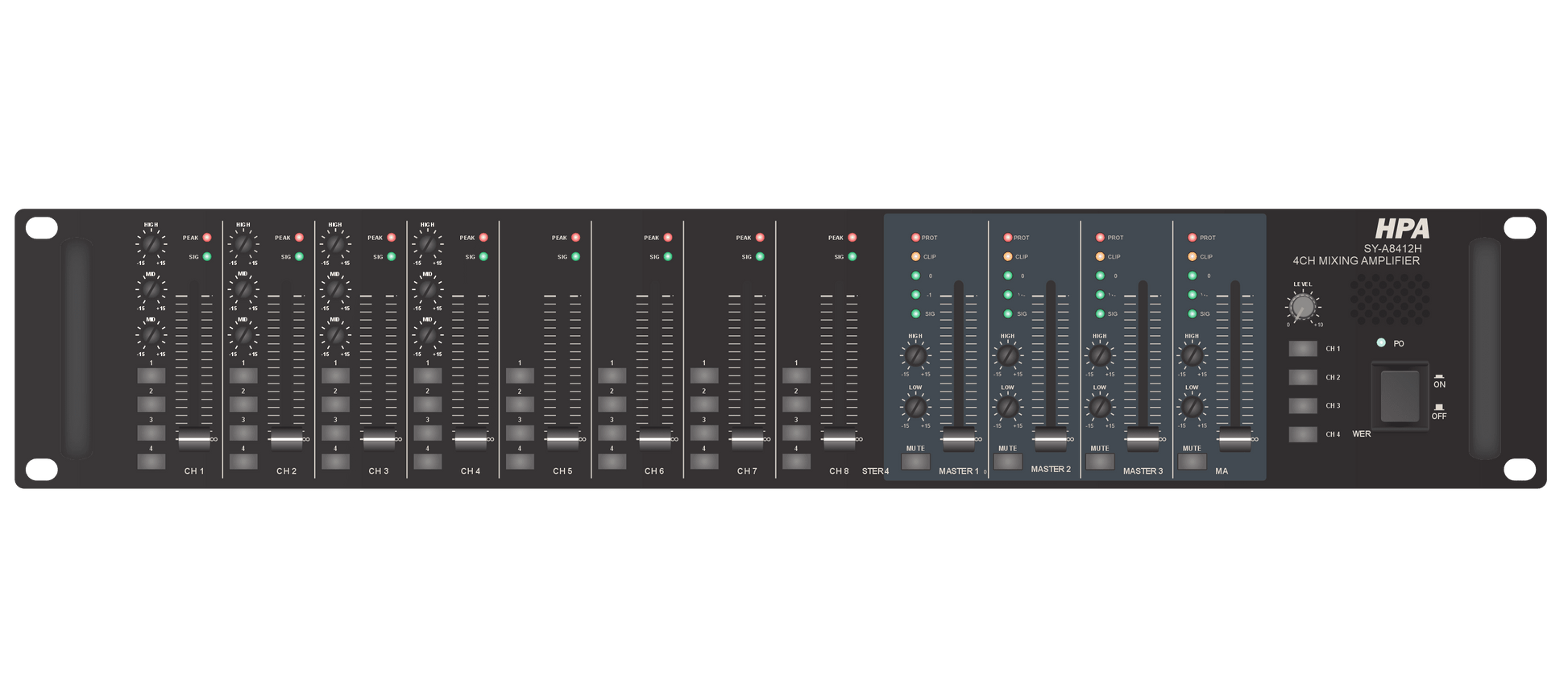

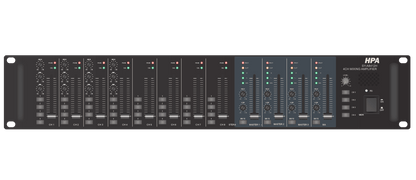

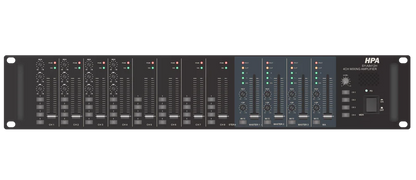

• Controls
– Front : 4 Mic/Line Input Level(CH1-4) with 3-band EQ and selector
switches.
4 Line Input Level (CH5-8) with selector switches.
4 Output Level with 2 Tone control and Mute switch.
Monitor Level with selector switches.
– Rear : 8 Gain control for each input.
Talkover switch for CH1.
Phantom Power switches for CH1 and CH2-4.

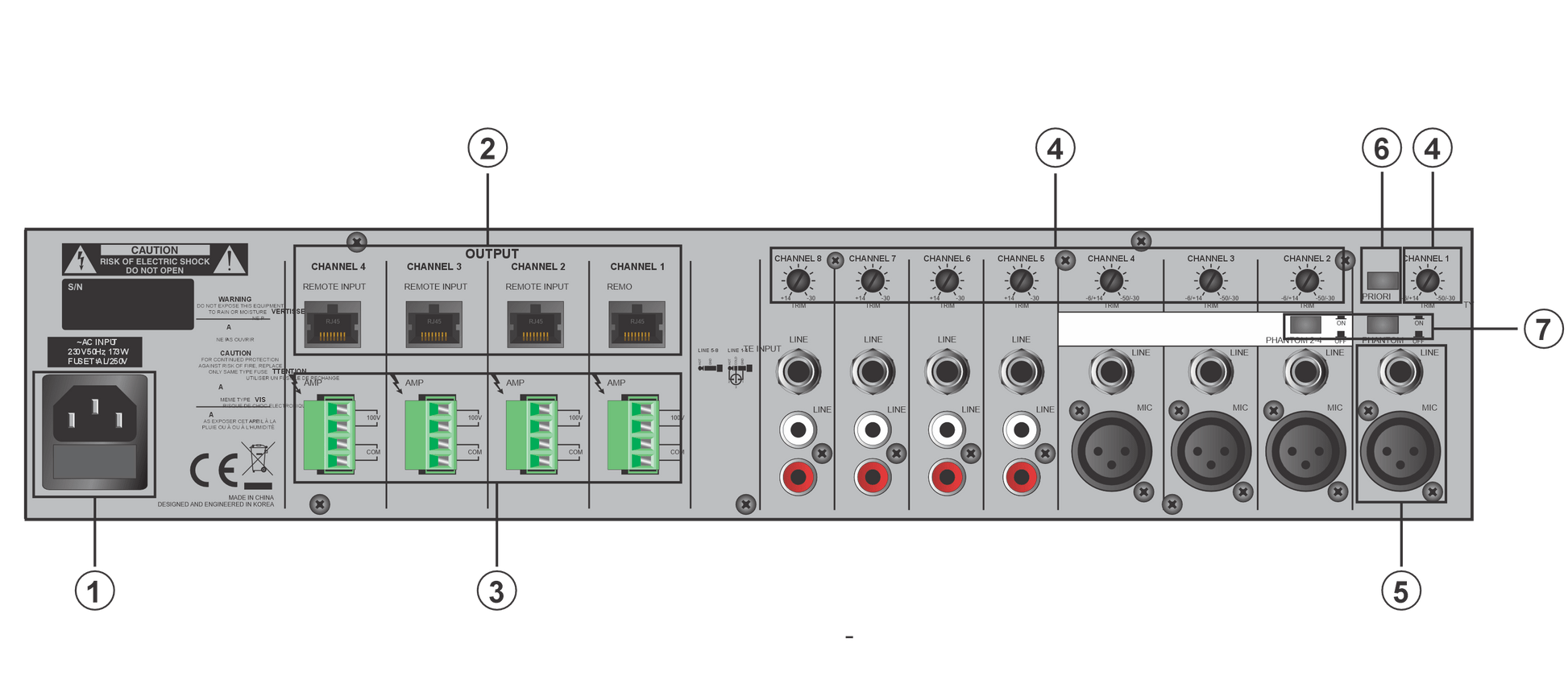

• Connectors
– 4 XLR Electronically Balanced jack and 1/4” phone jack for CH1-4 input.
– 4 1/4” phone jack and RCA jack for CH5-8 input.
– RJ45 jack for Remote operation.
– Euro Block for 4 output.
• Indicators: Power. SIG, CLIP for each input channel and SIG,-
10dB,0dB, CLIP,PROT for each output channel
