Features :
-8 MONO(M1636FX),16 MONO(M2436FX) INPUT AND 4 STEREO INPUT
Any sound source of microphones, cassette decks, electronic guitars, organs can be applied to
the channel input.
- MAIN L/R AND GROUP1/2,3/4 OUTPUT
Main L/R and GROUP1/2,3/4 are provided for convenient use.
- AUX RETURN AND 2 AUX SEND
For convenient use of external equipment, AUX SEND and AUX RETURN function are provided.
- 8 MONO (M1636FX), 16 MONO (M2436FX) CHANNEL INSERT.
- CHANNEL EQUALIZER
The 3 band equalizer are designed for ±15dB control on MONO input channels and 4 band
equalizer for stereo input channels-- ±15dB control on HF&LF, ±12dB control on MID HF& MID
LF .
- PFL FUNCTION OF ALL CHs
The PFL function allows you to monitor any input channels through headphone outputs and control room outputs before the channel fader.

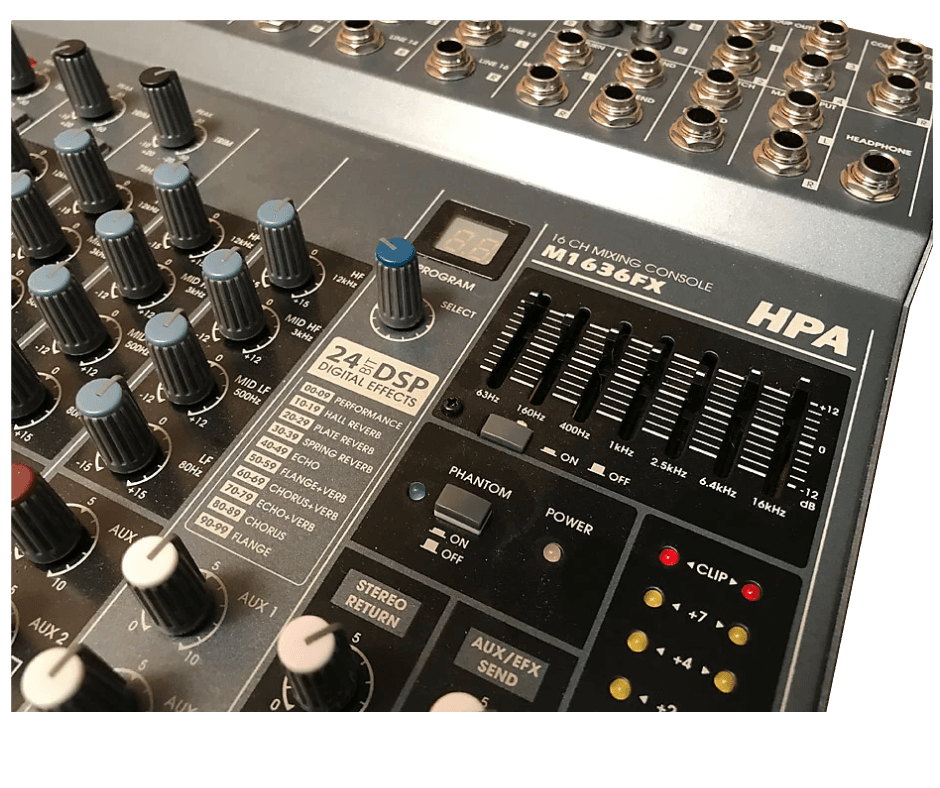

- DSP FUNCTION : 100 SELECTABLE PRESETS
A built-in 24bit DSP(Digital Signal Processor ) with 100 selectable presets including Reverb,
Delay and Chorus, offers dazzling studio quality effects.
- FOOT SWITCH
- PHANTOM POWER (+48V)
Phantom power is provided for easy connection of condenser microphones requiring an external
power supply.
- RACK MOUNTING
Detachable rack ears for mounting in a standard 19” rack enclosure

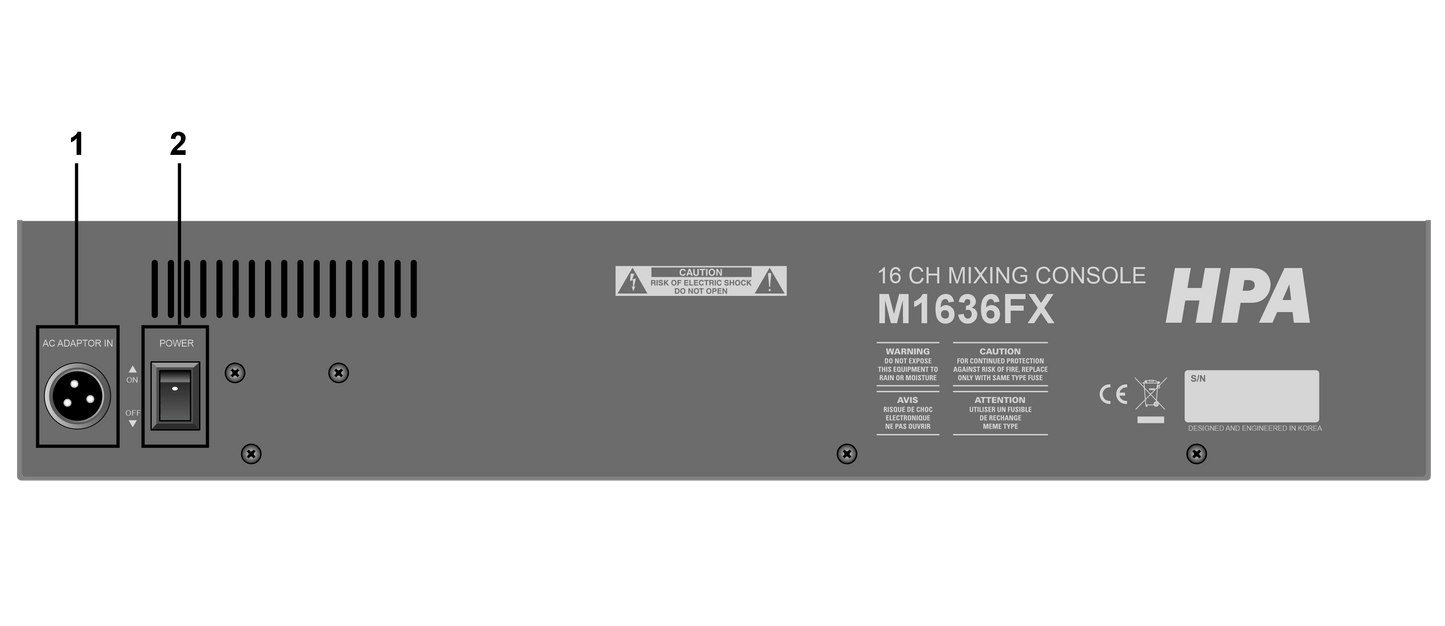

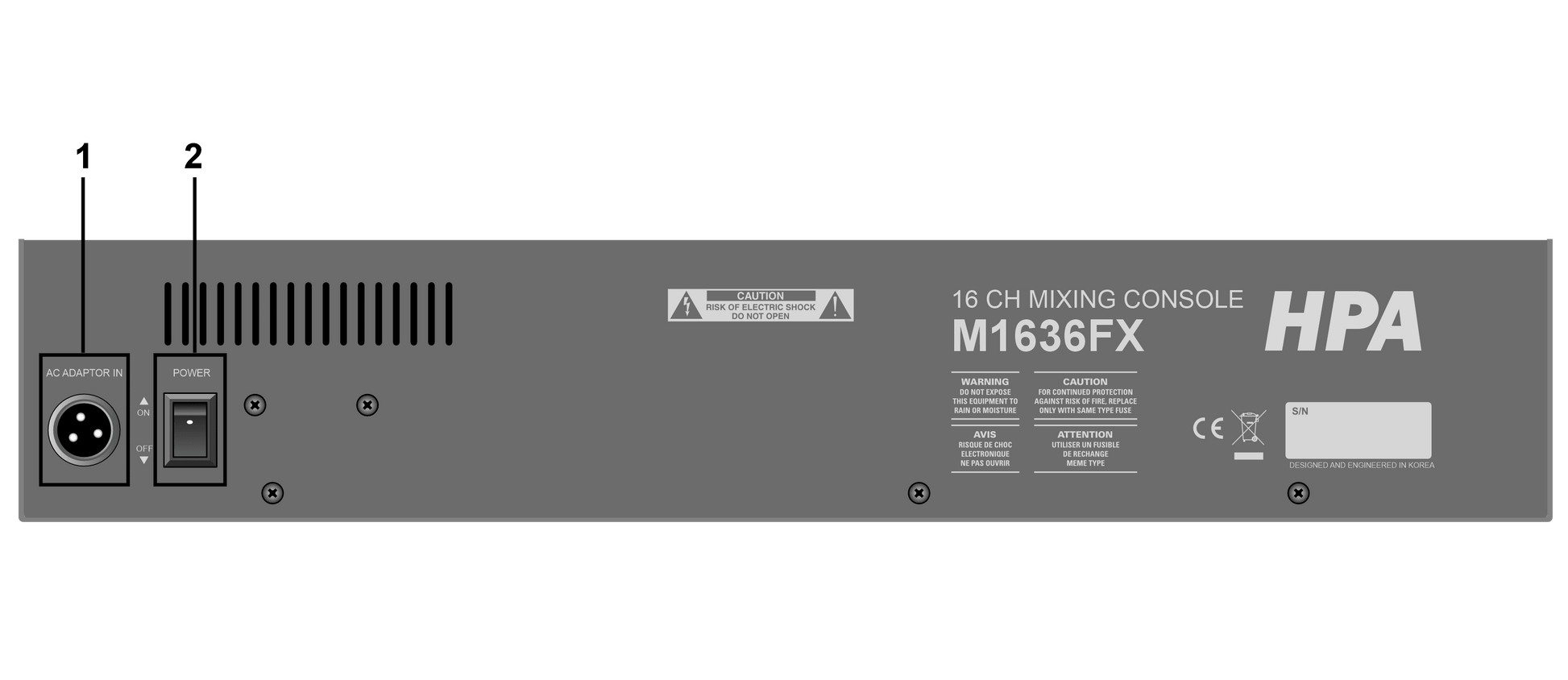

- EXTERNAL AC POWER
